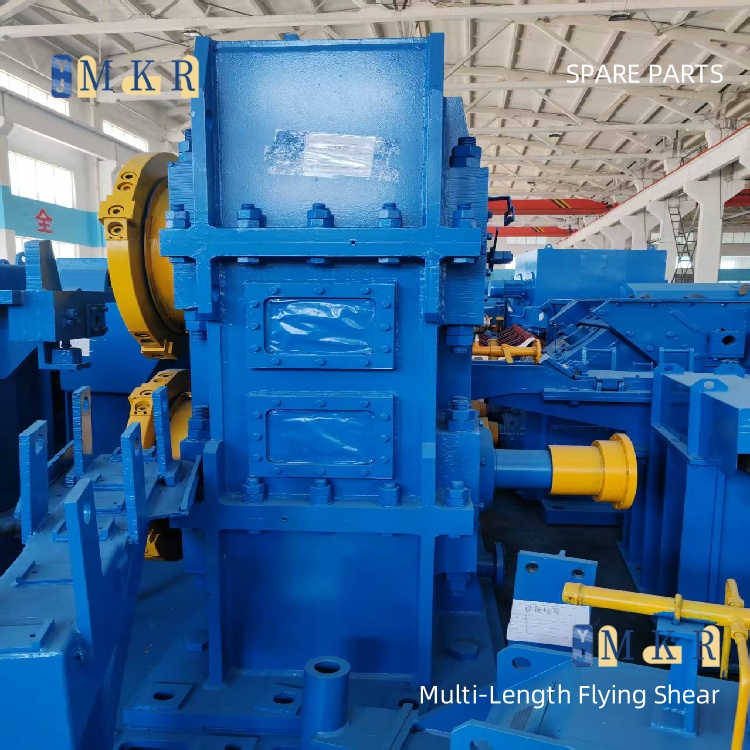

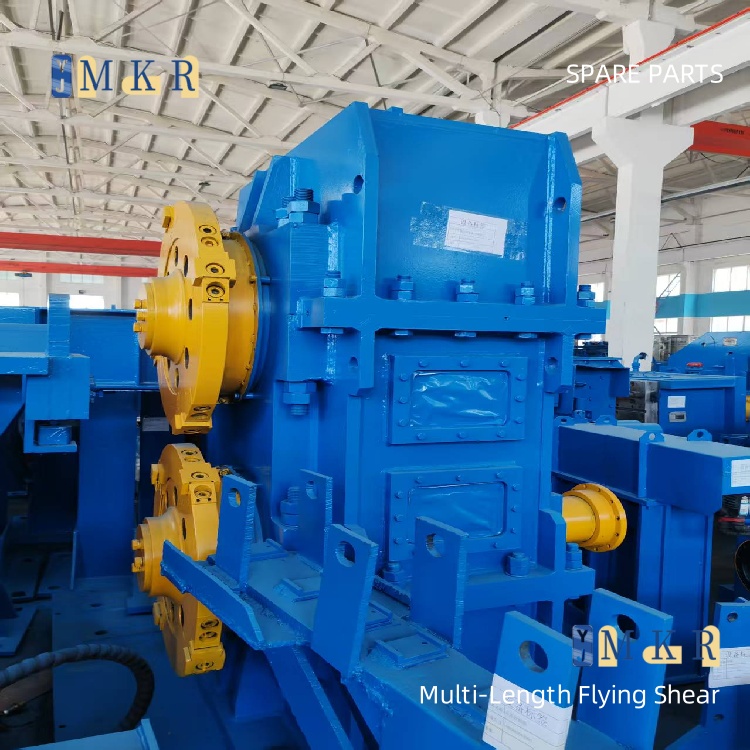

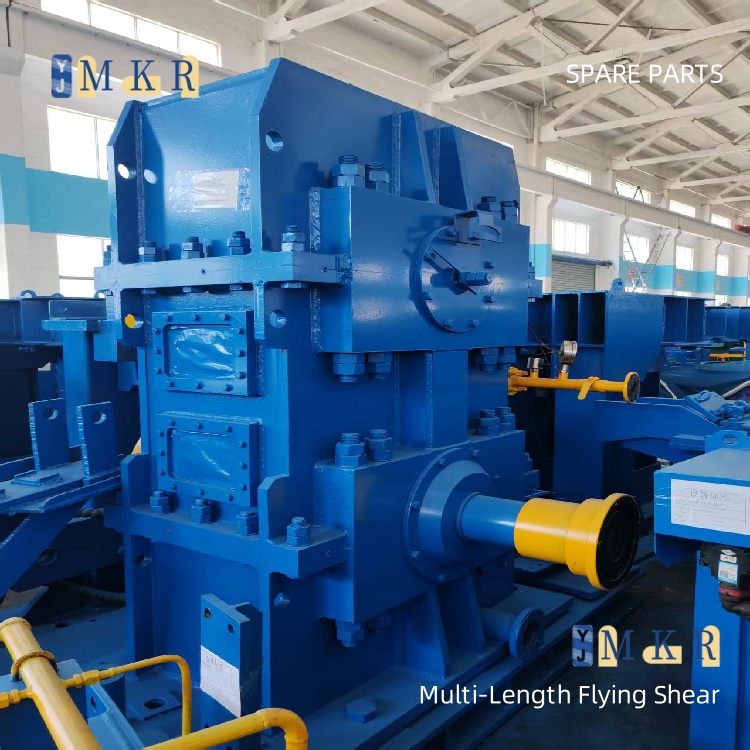

Name: Multi-Length Flying Shear

Appearance dimensions: 2800*1600*2200

Weight: 7000kg

A multi-length flying shear is a device that can transversely shear the processed materials (such as strips, bars, etc.) into “multiple lengths” while they are running at high speed continuously. The so-called “multiple lengths” refer to integer multiples of the final product's fixed length. Later, the multiple-length materials can be further cut into the final fixed-length products by means of cold saws, circular saws and other equipment.

First, the multi-length flying shear is capable of high-speed synchronous shearing. Its core advantage is that it does not require stopping the machine. It can realize real-time matching between the speed of the shear blades and the running speed of the material through mechanical structures or servo control systems, completing transverse shearing while the material is moving at high speed continuously, without affecting the continuous operation efficiency of the production line.

Second, the multi-length flying shear can precisely control the multi-length. It real-time monitors the running speed and length of the material through sensors such as encoders and laser rangefinders, and combines with preset multi-length parameters to accurately control the shearing timing, ensuring that the length error of the multi-length materials after shearing is within the allowable range.

Finally, the multi-length flying shear can be adapted to various types of materials. It can be used for shearing strips, plates or bars, and the material and structure of the shear blades will be adjusted accordingly according to the thickness and hardness of the materials.

In short, the multi-length flying shear is a key equipment that combines “high-speed continuous production” and “multi-length specification preprocessing”, and plays an irreplaceable role in the modern metal rolling process.
