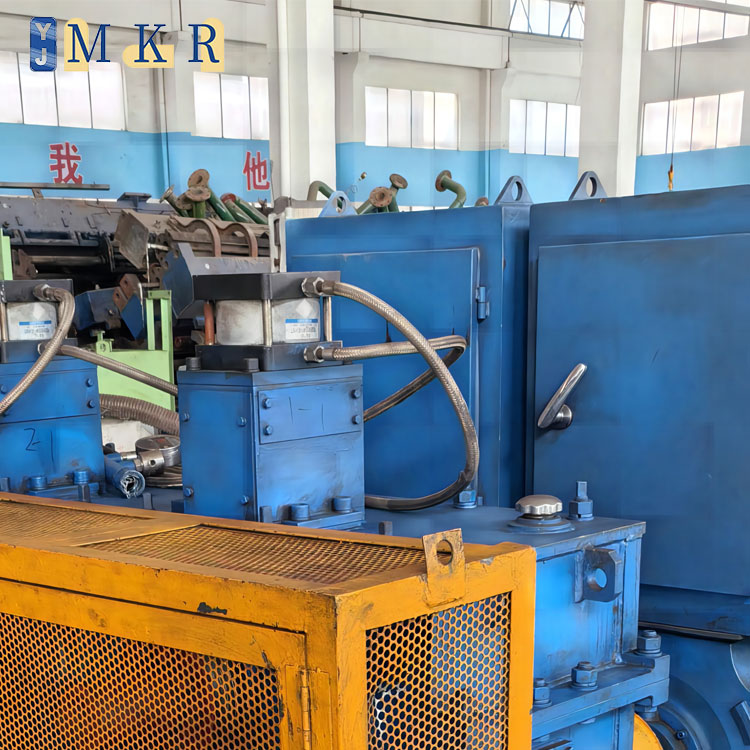

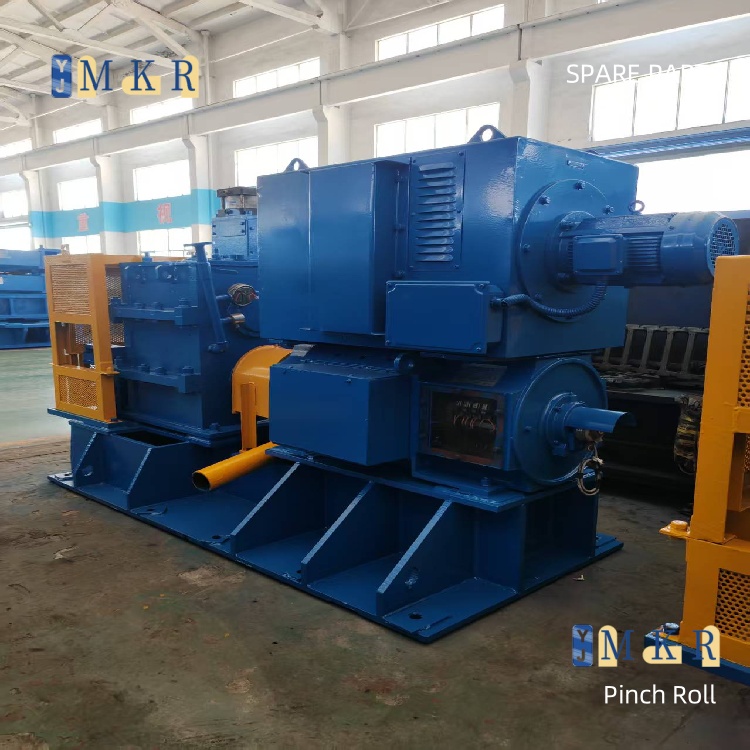

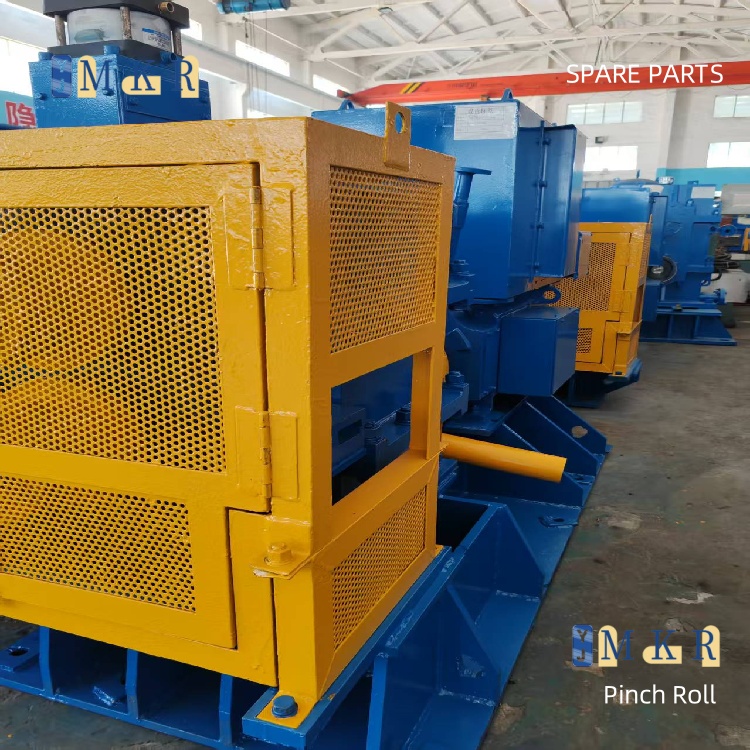

Name: Pinch Roll

Appearance dimensions: 2600*1100*1500

Weight: 3100kg

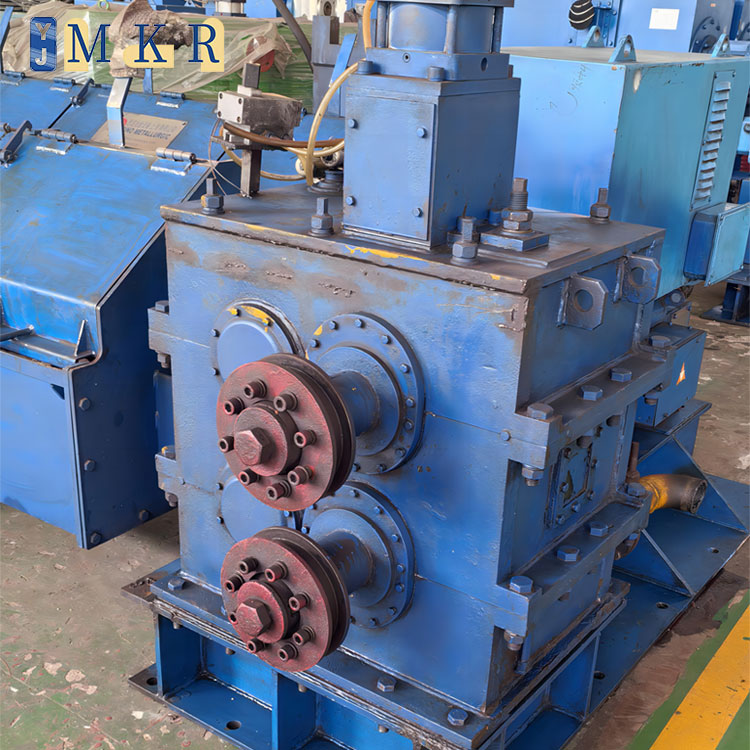

The pinch roll is an important conveying equipment. It forms a clamping force on materials through paired rollers and realizes stable conveying of materials under the action of a driving device. The pinch roll is mainly composed of upper and lower rolls, an upper roll opening and closing device, a roll gap adjusting device, and a pinch roll transmission device, etc.

The pinch roll is installed at the entrance of the coiler, and its main functions are as follows:

1. Guide the head of the strip into the entrance guide plate of the coiler.

2. When the tail end of the strip is thrown out of the finishing mill, apply the required tension to the strip to obtain a good coiling shape.

3.  Achieve a good coil shape through the horizontal adjustment of the pinch roll.

The pinch roll has the advantages of high conveying stability and precise positioning. Through reasonable arrangement of the pinch roll, high-precision positioning and smooth transfer of materials can be realized in complex production processes, providing a solid guarantee for the efficient connection of various processes. Its unique structural design forms uniform and controllable clamping force on materials, preventing materials from sliding, shifting or even falling during conveying, and reducing the risk of product damage.

In conclusion, with its unique structure and working principle, the pinch roll plays a key role in the material conveying and control link of industrial production. It is an important equipment to ensure the smooth production process and improve product quality and production efficiency.
