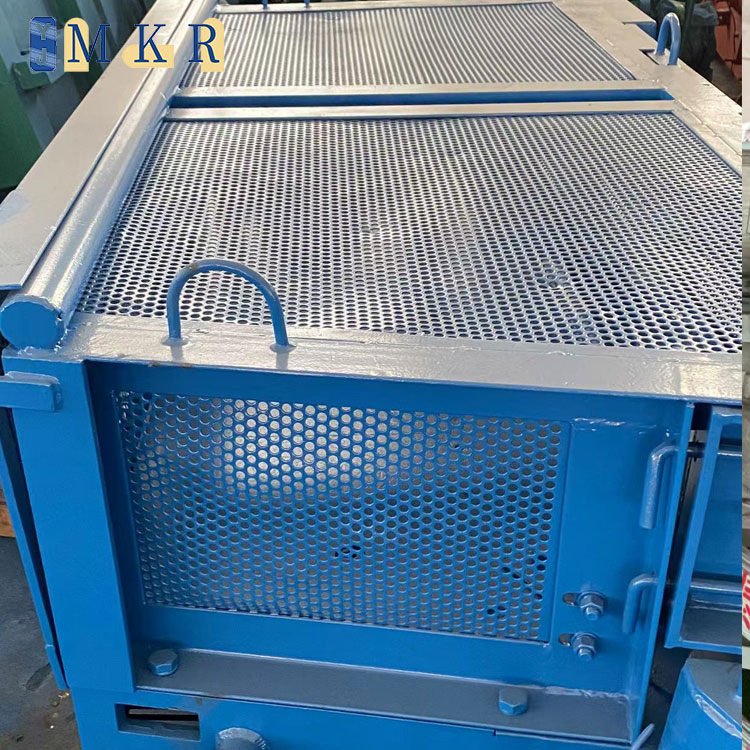

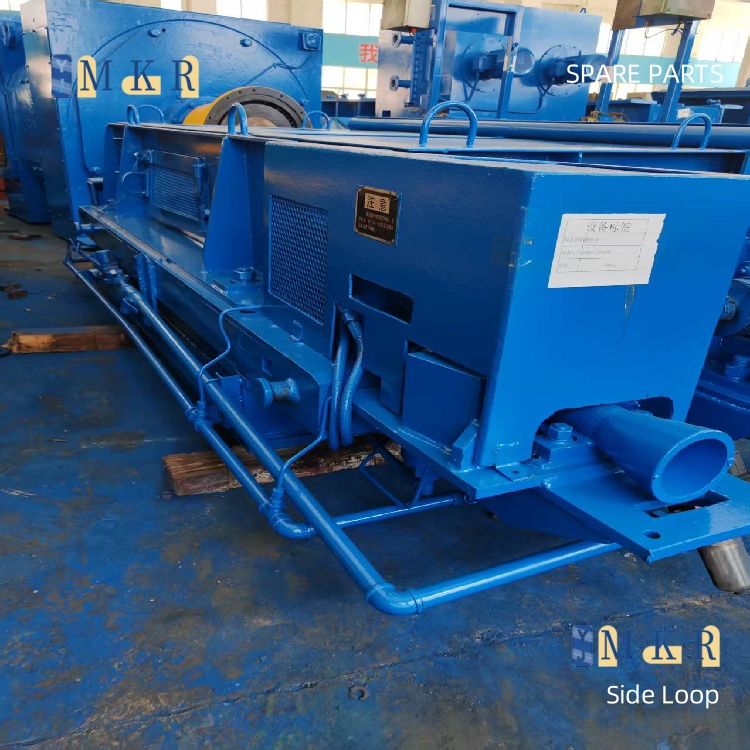

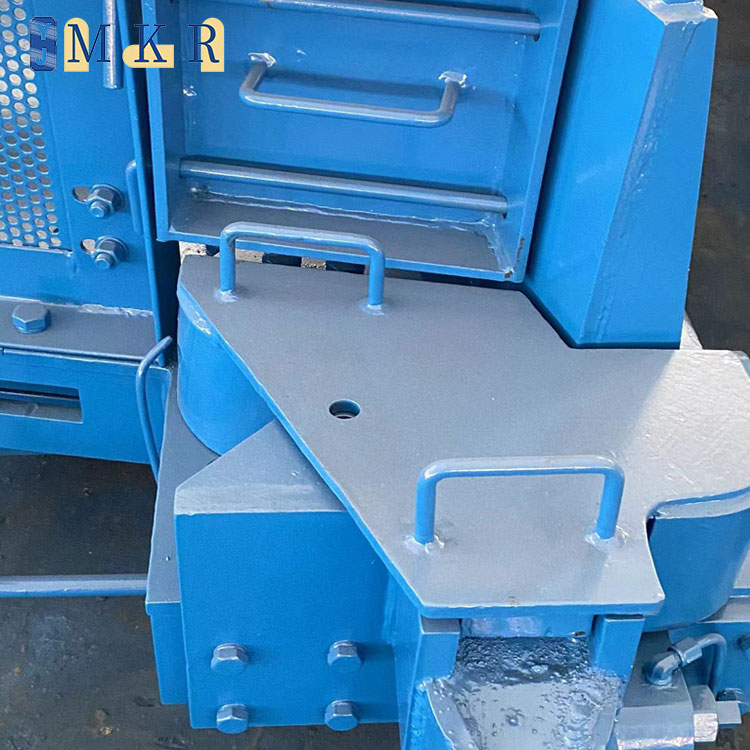

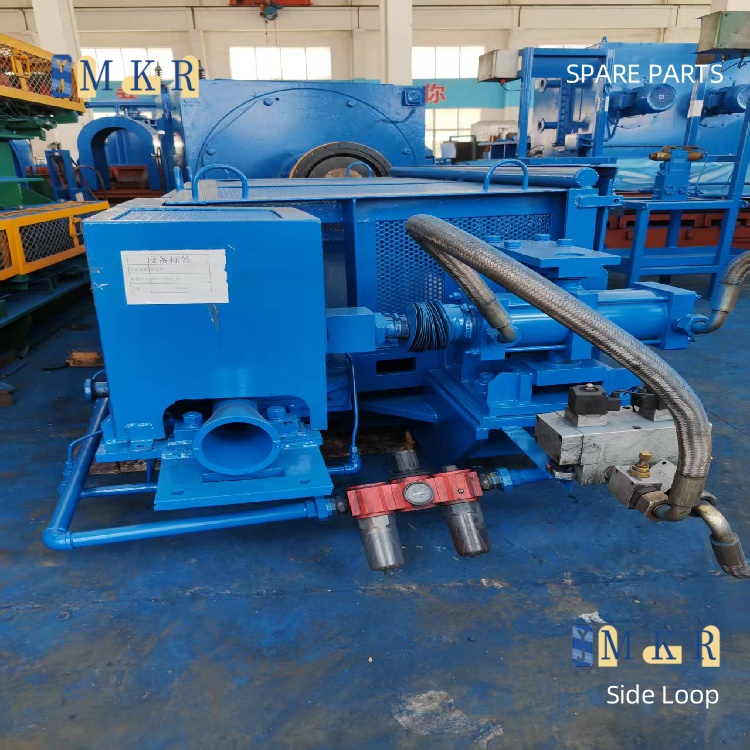

Name: Side Loop

Appearance dimension: 3600*1250*950

Weight: 2600kg

The side loop is one of the key equipment on the steel rolling production line, mainly used for storing and adjusting the length of steel strips or other rolled materials, ensuring the continuity and stability of the rolling process.

The side loop consists of a horizontal loop table, a loop pusher and an inlet and outlet guide roller. The loop pusher is a guide roller operated by a cylinder. The side loop in front of the finishing mill cannot be freely detached, and a control process is required for the speed change, loop pushing action, and scanning feedback of the rolling mill.

Firstly, the side loop can ensure the continuity of rolling, effectively coordinate the imbalance of metal flow rate between each frame, avoid the phenomenon of steel stacking or pulling caused by the mismatch of front and rear frame speeds, and improve production efficiency.

Secondly, the side loop can stabilize the tension of the strip steel, maintaining a stable shape and dimensional accuracy during the rolling process, and improving product quality.

Finally, the side loop can adapt to different rolling processes. It can flexibly adjust the working parameters of the loop according to different rolling varieties, specifications, and process requirements to meet diverse production needs.

In short, whether in large steel joint ventures or specialized steel rolling processing plants, the side loop plays an indispensable role as important equipment to ensure smooth steel rolling production and product quality.
